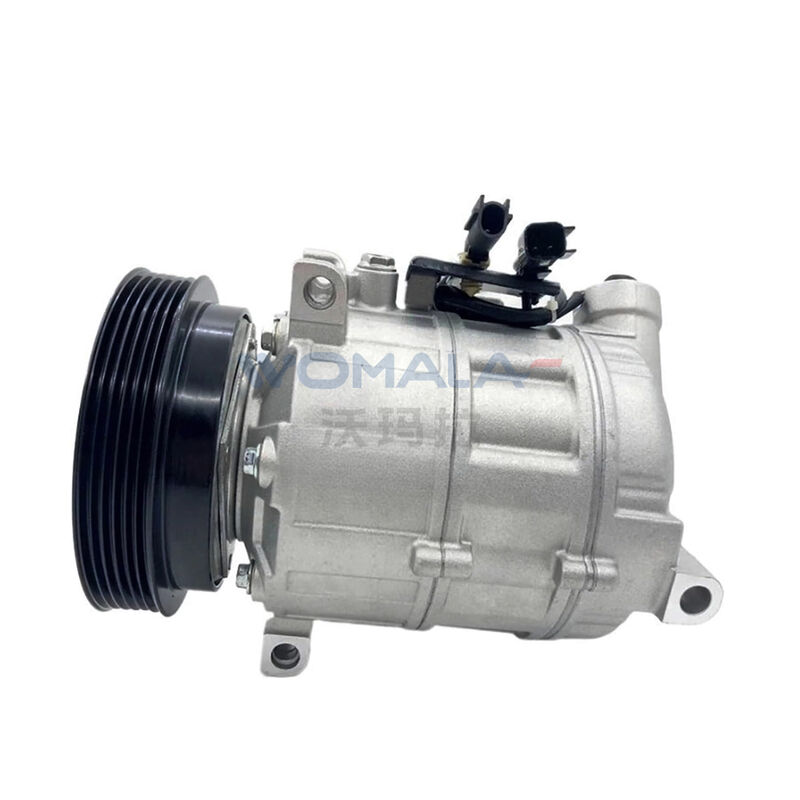

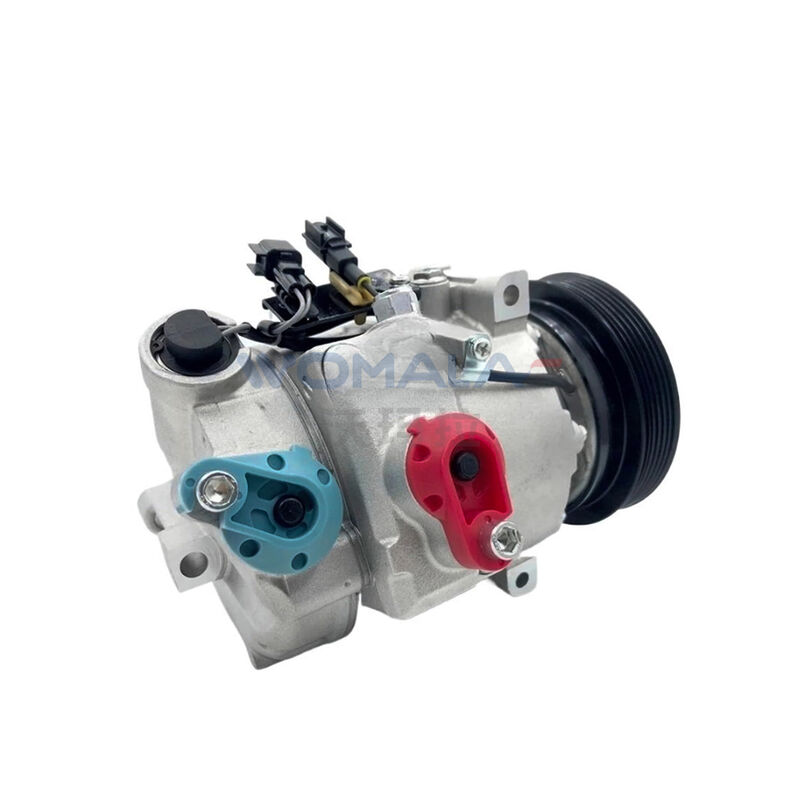

Womala A/C Compressor Assembly LR020193 LR021947 36002746 36051068

Product Details: A/C Compressor Assembly - LR020193

This A/C compressor assembly is a precision-engineered component designed for the vehicle's air conditioning system. It compresses and circulates refrigerant throughout the system, enabling effective cabin cooling and climate control. Manufactured to meet original equipment specifications, this direct-fit replacement restores factory cooling performance.

Core Function: The compressor draws in low-pressure refrigerant vapor from the evaporator and compresses it into a high-pressure, high-temperature gas before sending it to the condenser. This process is essential for heat exchange and maintaining comfortable cabin temperatures under all operating conditions.

Technical Specifications:

• Part Number: LR020193

• Part Name: A/C Compressor Assembly / Air Conditioning Compressor

• Supersessions: LR021947 (superseded by LR020193)

• Type: Denso 7SEU17

• Voltage: 12V

• Pulley Grooves: 6PK

• Compressor Oil: Denso ND-8 PAG Oil

• Refrigerant: R134a

• Clutch: Included, with electromagnetic engagement

• Mounting: Direct bolt-on replacement

Compatible Vehicle Models

Replacement Part Numbers

Failure Symptoms:

• Warm air blowing from A/C vents when set to cool

• Grinding or whining noise from the engine area when A/C is engaged

• A/C clutch not engaging

• Intermittent cooling

• Variable displacement solenoid failure

Installation Notes:

• This is a direct-fit replacement part designed to meet or exceed OE specifications

• When replacing the A/C compressor, it is strongly recommended to also replace the receiver/drier, expansion valve, and evaporator, as a failed compressor often distributes small particulates throughout the A/C system that can clog these components

• The receiver/drier should always be replaced whenever the A/C system is opened, as the desiccant inside will absorb moisture from the air and lose its effectiveness

• Compressor oil must be properly distributed before first engagement: manually turn the compressor pulley 10-15 times to ensure even oil distribution

• Always check and match the oil quantity from the old compressor to avoid over- or under-charging the system

• After installation, the system must be professionally evacuated, leak-tested, and recharged with the correct type and quantity of refrigerant (R134a)

• A/C compressor replacement is not a DIY project; only certified automotive technicians with proper equipment should perform this service

• Compressor mounting bolts torque specification: 25 Nm (18 lb-ft)

Note: Since automotive refrigerant is invisible to the naked eye, refrigerant leaks are often misdiagnosed as A/C compressor failures. Always have the system inspected by a certified technician to verify the compressor is actually faulty before replacement. Verify compatibility using your vehicle's VIN number before purchasing. Professional installation is highly recommended.
